Petrochemical Shelters for Hazardous Environments
- ChemSAFE Safe Havens
Petrochemical shelters from MineARC’s ChemSAFE range offer a safe and secure go-to area for multiple personnel in the event of a toxic chemical release, fire, explosion or other hazardous emergency response scenarios. The range includes fully transportable Safe Havens and Toxic Gas Shelters as well as Shelter-in-Place Room Conversions and Sealed Rooms with purpose-built life support systems.
Portable Safe Haven
- ChemSAFE Standard Design

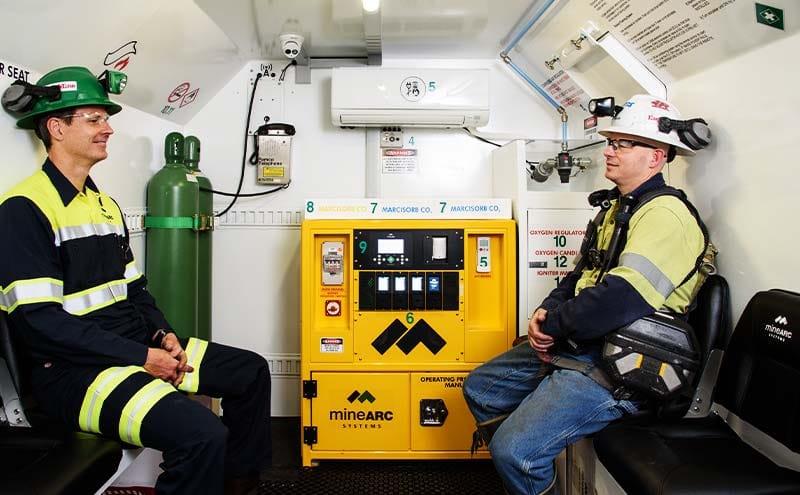

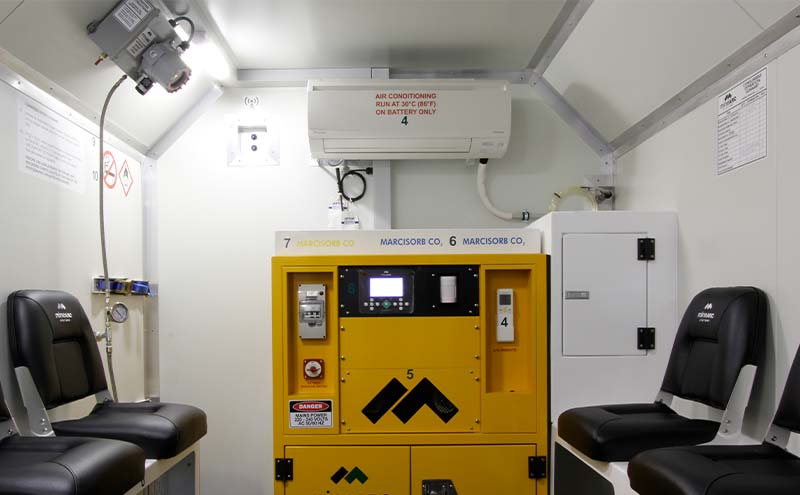

The ChemSAFE Standard Design Safe Haven has been continuously refined to offer the latest in safe refuge technology, providing chemical facility occupants with optimal protective features such as blast resistance, toxic gas protection, scrubbing, and remote monitoring.
- Blast & toxic gas protection
- Zero air changes per hour
- Advanced Series IV Control System
- 8-40 people
Toxic Gas Shelter
- ChemSAFE Utility Design
The ChemSAFE Utility Design Toxic Gas Shelter is engineered for chemical protection; featuring a narrow construction for space restricted applications. The shelter’s ultra-portable design features lifting lugs and forklift slots, allowing easy manoeuvrability around any facility.
- Toxic gas protection
- ELV Control System
- Narrow shell for space restricted areas
- 6-30 people
Blast Resistant Building
- ChemSAFE BRB
MineARC’s ChemSAFE Blast Resistant Buildings (BRBs) are designed to provide protection from an industrial hazard such as a blast or flammable gas release. The open space pre-fabricated steel buildings can serve as work spaces or break rooms for general day-to-day use.
- Multi-use building design
- Up to 10psi blast rating
- Integrated life support options
- Network connection, smoke detectors
Shelter-in-Place
- ChemSAFE Custom Projects
ChemSAFE conversion of an existing room to Safe Haven allows occupants to shelter inside buildings, providing high levels of protection from toxic release.
- Customised modular construction
- ACH<0.1
- Integrated life support options
- Electrical packages available
- Custom capacities
What is a Petrochemical Shelter?
| Model | Rating (psi) | Height (m/ft) | Width (m/ft) | Length (m/ft) | Weight (kg/lb) |
| PS-BR-9-12-12-1P | 1 | 2.75 / 9 | 3.65 / 12 | 3.65 / 12 | 6300 / 13700 |
| PS-BR-9-8-20-1P | 1 | 2.75 / 9 | 2.44 / 8 | 6.10 / 20 | 6000 / 13100 |
| PS-BR-9-12-40-1P | 1 | 2.75 / 9 | 3.65 / 12 | 12.20 / 40 | 13300 / 29200 |
| PS-BR-9-20-40-1P | 1 | 2.75 / 9 | 6.10 / 20 | 12.20 / 40 | 21300 / 46900 |
| PS-BR-9-12-12-10P | 10 | 2.75 / 9 | 3.65 / 12 | 3.65 / 12 | 9600 / 21000 |
| PS-BR-9-8-20-10P | 10 | 2.75 / 9 | 2.44 / 8 | 6.10 / 20 | 10300 / 225000 |
| PS-BR-9-12-40-10P | 10 | 2.75 / 9 | 3.65 / 12 | 12.20 / 40 | 22700 / 49900 |
| PS-BR-9-20-40-10P | 10 | 2.75 / 9 | 6.10 / 20 | 12.20 / 40 | 33900 / 74700 |
A petrochemical shelter or safe haven is a sealed environment, in which you can take shelter during a hazardous event when evacuation is not possible. These shelters help protect personnel in disasters (fires, explosions, and gas releases), as well as minimise the risk to, and enhance the effectiveness of, emergency responders.
To be classified as a safe haven, a refuge must:
- Be a sealed, enclosed environment with 0% air changes per hour (ACH)
- Provide a source of clean, breathable air by removing carbon monoxide and carbon dioxide from the internal atmosphere and adding in medical grade oxygen
- Control the internal environment, through heating and cooling
- Have a back-up supply of power to support the internal systems if mains power is lost
Petrochemical Safe Havens can be portable, modular, or developed in new or existing buildings. They are purposefully-designed for specific hazards at each petrochemical site.
You may also have heard a Safe Haven called:
- Shelter-in-Place (SIP)
- Protect-in-Place (PIP)
- Refuge Chamber
- Chemical Shelter
- Safe Refuge
- Toxic Gas Refuge
- Temporary Refuge
Comparison Table
| Name | Capacity * | Advanced Digital Control System ** | iVAN *** | Aura-FX Gas monitoring | Vestibule (Airlock) | Shelter-in-Place | 12hrs Battery Backup | Blast Rating **** |
|---|---|---|---|---|---|---|---|---|
 |
8-40 | 5-12 psi | ||||||
 |
6-30 | 1 psi | ||||||
 |
CUST | 1-10 psi | ||||||
 |
CUST | X |
- * Capacity Every safe haven is built with a certain rated occupancy in mind. The life support systems are designed to safely house this number of people for the designated duration.
- ** Advanced Digital Control System All safe havens with a Series IV Scrubbing System feature MineARC’s unique Advanced Digital Control System.
- *** iVAN iVAN is an on-board navigation assistant that guides occupants through operational procedures.
- **** Blast Rating MineARC offers blast rating upgrades to all safe havens.
Increasing Blast Effects Comparison
Possible effects on the human body from increasing blast pressure:
Direct Effects
PSI
DESCRIPTION
2.1
Threshold for eardrum rupture
5.1
50% probability of eardrum rupture
7.1
90% probability of eardrum rupture
10
Threshold for internal injuries by blast
12
Threshold for lung haemorrhage
20.1
50% probability of fatality from lung haemorrhage
30
90% probability of fatality from lung haemorrhage
70
Immediate blast fatalities
Indirect Effects
PSI
DESCRIPTION
0.5
Injuries by glass fragments
1.1
Threshold for skin lacerations by missles
1.5
People knocked down by pressure wave
2.1
Possible fatality by being projected against obstacles
4.1
50% probability of fatality from missile wounds
7.1
100% probability of fatality from missile wounds
8.1
People standing up will be thrown a distance
Overpressure Thresholds for Structures and Equipment
PSI
DESCRIPTION
0.2
Threshold for glass breakage
2.2
Collapse of non-reinforced concrete or cinderblock walls
3
Collapse of industrial steel frame structure
5.1
Displacements of pipe bridge, breakage of piping
7.3
Displacement of cylindrical storage tanks, failure of pipes
10.2
Total destruction of buildings, heavy machinery damage
Emergency Management
When evacuation is not possible, Petrochemical shelters provide a safe alternative and are an essential part of emergency management. Shelters should be located in proximity to potential blast or gas release zones.
Refuge Chamber Fundamentals
Case Studies
CSBP Continues its Ammonia Safety Focus with ChemSAFE
This chemical shelter with fixed wheel and tow kit allowed on site personnel to move the safe haven onto the port during ammonia imports.
Custom Central Control Room Shelter for Chlorine Gas Release
Tronox in Kemerton Industrial Park, Western Australia, install custom chemical Safe Haven with remote plant access and chlorine gas monitoring.
Rio Tinto Yarwun Custom Ammonia Chemical Shelters
Rio Tinto in Yarwun, Queensland, install multiple custom refuge chambers to protect from Ammonia gas risks.
Anhydrous Ammonia Release Shelters
The installation of ChemSAFE ammonia release Shelter-in-Place and Safe Havens to protect on-site personnel and provide safe refuge at dedicted Muster Points.
Chemical Shelters For Ammonia Protection at Yara Pilbara Fertiliser Plant
Four 40-person emergency shelters were installed and commissioned at Yara Pilbara Fertilisers. Anhydrous ammonia
Custom Engineered Safe Haven For PetroChina Gasfield
Custom engineering a chemical safe haven with methane and hydrogen sulphide monitoring and scrubbing for PetroChina Oil and Gasfield Southwest Company.
